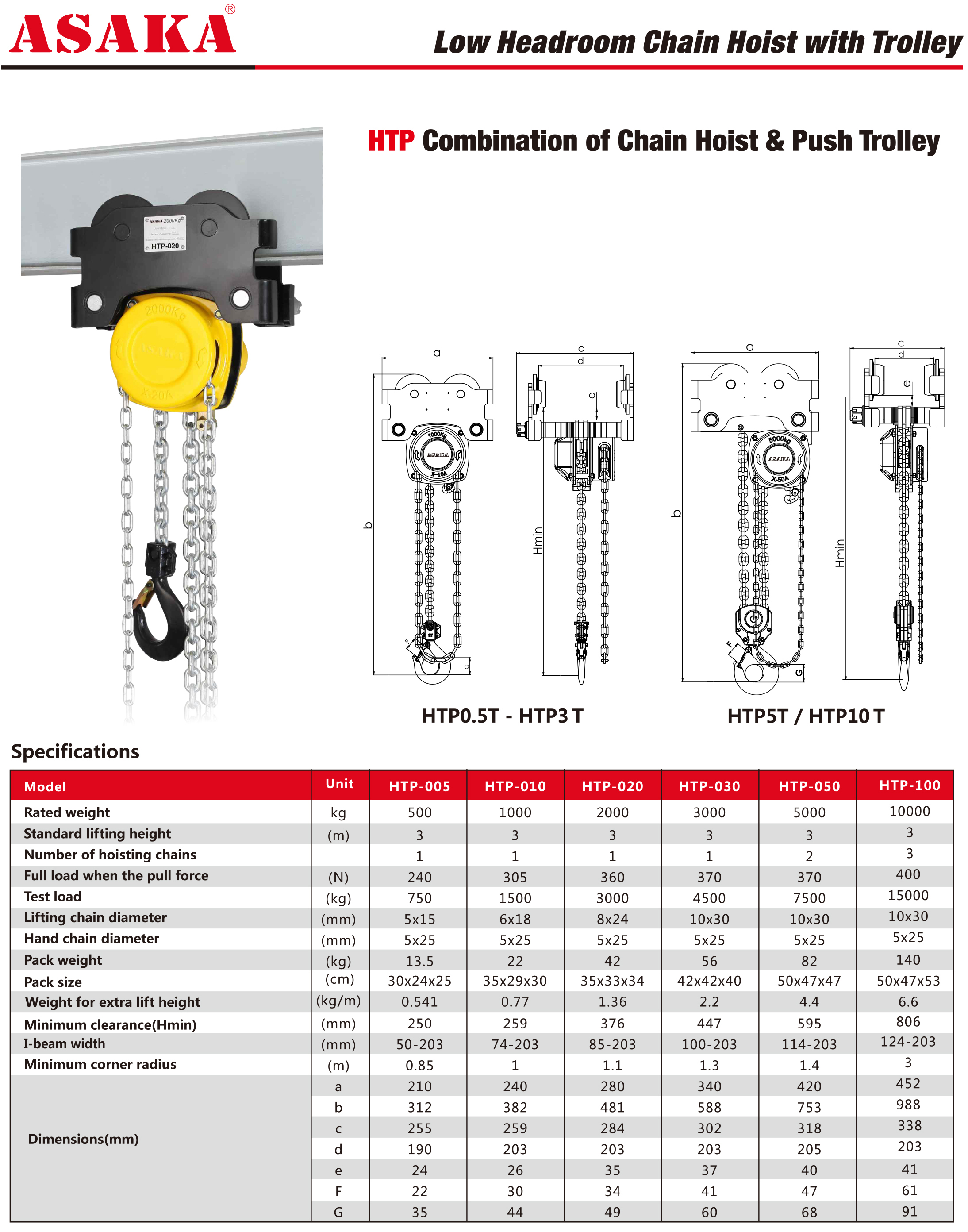

HTP type Hand chain hoist with integrated push trolley

HTP type Hand chain hoist with integrated push trolley
Capacity 500 - 10000kg
The combination of the DY type chain hoist with a low headroom
manual trolley provides even more flexibility in the application.
Features
• All units of this series up to a capacity of 3000 kg are built with a single chain fall, the min. headroom has been further reduced. Ideal for applications with low ceilings and limited headroom.
• The approved and almost stepless adjustment system of the trolley enables the simple and quick assembly due to adjusting nuts.
• Trolleys up to 5 t capacity are offered for two beam ranges; range for a flange width of up to 203mm is standard and covers approx. 80% of all applications. Conversion to range for beam width up to 300mm can be easily accomplished.
• The trolley wheels are designed for a max. beam profile
incline of 14% (DIN 1025 - part 1), excellent rolling features are guaranteed by pre-lubricated, encapsulated ball bearings.
• Anti-drop and anti-tilt devices as standard.

Options
• Adjustable overload protection device.
• Chain container
• Rubber buffers
• Corrosion resistant version
• Beam locking device to secure the unloaded hoist with integrated trolley in a fixed position on the beam (park position e.g. on ships).
